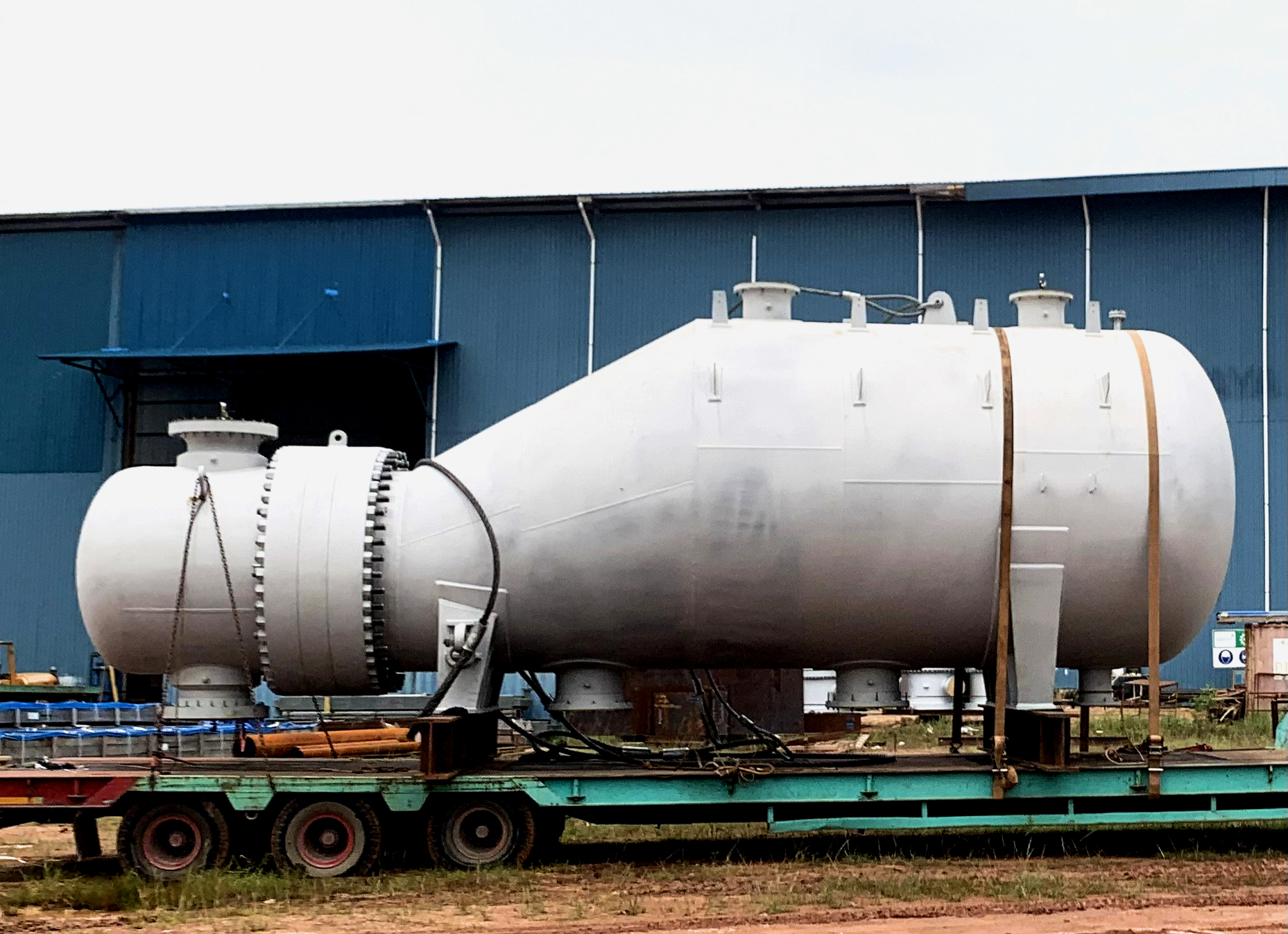

SHELL & TUBE HEAT EXCHANGERS

Shell & Tube Heat Exchangers are devices used to transfer heat between two fluids. One fluid flows through a series of tubes, while the other fluid flows around these tubes within a shell. This design allows efficient heat transfer and is commonly used in various industrial applications.

Selection of Shell And Tube :

• Thermal Requirements Evaluate the required heat transfer rate, temperature ranges, and thermal efficiency.
• Fluid Properties Consider the type, pressure, and flow rate of the fluids involved, as well as their chemical compatibility with the materials of construction.
• Design Specifications Determine the appropriate configuration (single-pass or multi-pass), tube length, diameter, and layout (triangular, square, etc.).
• Material Selection Choose materials that can withstand the operating conditions, such as stainless steel for corrosive environments or copper for better thermal conductivity.
• Pessure and Temperature Limits Ensure the exchanger can handle the maximum pressure and temperature conditions of the process.
• Maintenance Needs Consider ease of cleaning, accessibility, and the potential for fouling based on the nature of the fluids.
• Cost Considerations: Balance the initial cost with the long-term operational and maintenance costs to ensure economic viability.

Applications for Industrial Shell & Tube Heat Exchangers :

• Petrochemical Industry – Used for cooling, heating, and condensing hydrocarbons and other chemicals in refineries and chemical plants.
• Power Generation – Integral in power plants for cooling steam in condensers, as well as in heat recovery systems.
• Oil and Gas – Employed in upstream and downstream processes, including gas dehydration, oil refining, and petrochemical processing.
• Pharmaceutical Industry – Utilized in the production of drugs and chemicals where precise temperature control is crucial.
• Marine Applications – Employed in ship engines and other onboard systems for cooling and heat exchange purposes.
